PE Insulated Coaxial Cable |
Standard: UL 758,1581
|
|
|

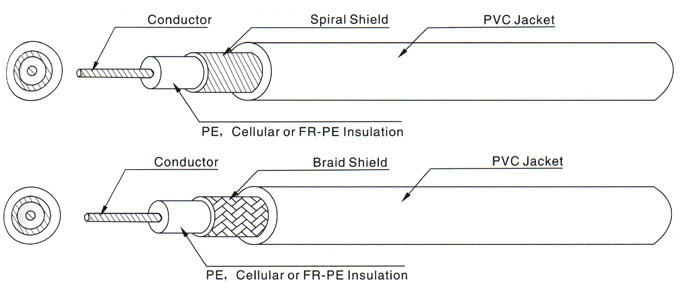

| ■ CONSTITUTION： |
|
 |
|
| PRODUCT DESCRIPTION |
|
| ● |
Rated voltage: 30V,Rated temperature:60℃or80℃ |
|
| ● |
Tinned or bare,stranded or solid copper conductor,40AWGmin. |
|
| ● |
PE,cellular PE or FR-PE insulation |
|
| ● |
Tinned or bare copper wire spiral or braid shield |
|
| ● |
PVC jacket |
|
| ● |
Passes UL VW-1 vertical flame test |
|
|
|
|
|
|
|
| APPLICATION |
|
| Internal wiring of TV，redio,receiver,VTR,tape recorder,etc |
|
|
|
UL 1354 60℃ or 80℃ 30V |
Conductor |
Insulation |
Shield |
Jacket |
Max Resistance at 20℃ |
Min Insulation Resistance,
at20℃ |
Dielectric Strength AC1min |
Standard Length |
| Spec |
|
Dia |
Nom. Thick. |
Nom.
Dia. |
Spiral |
Braid |
外径Nom.
Dia. |
标称
厚度Nom.
Thick. |
标称
外径
Nom.
Dia. |
| AWG |
No/mm |
mm |
mm |
mm |
mm |
NO./No/mm |
mm |
mm |
mm |
Ω/km |
MΩ.Km |
V |
Ft(M) |
| 30 |
7/0.10 |
0.30 |
0.25 |
0.80 |
0.10 |
|
1.00 |
0.30 |
1.60 |
354.24 |
1000 |
500 |
2000(610)
|
| 7/0.10 |
0.30 |
0.90 |
|
16/4/0.10 |
1.30 |
0.30 |
1.90 |
| 28 |
7/0.127 |
0.38 |
0.30 |
0.98 |
0.10 |
|
1.18 |
0.30 |
1.78 |
223.75 |
| 7/0.127 |
0.35 |
1.08 |
|
16/4/0.10 |
1.48 |
0.30 |
2.08 |
| 26 |
7/0.16 |
0.48 |
0.38 |
1.24 |
0.10 |
|
1.44 |
0.35 |
2.14 |
139.73 |
| 7/0.16 |
0.48 |
1.44 |
|
16/4/0.12 |
1.92 |
0.45 |
2.82 |
| 22 |
7/0.203 |
0.61 |
0.45 |
1.51 |
0.10 |
|
1.71 |
0.35 |
2.41 |
93.3 |
1000(305) |
| 7/0.203 |
0.55 |
1.71 |
|
16/4/0.12 |
2.19 |
0.45 |
3.09 |
|
