AVRS PVC insulated Stranded Wire

AVRS


聚氯乙烯绝缘绞型电线

PVC insulated Stranded Wire

标准 Standard: JB 8734.4--98

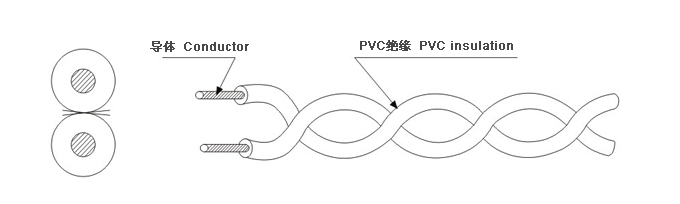

构造 CONSTITUTION:

产品说明

额定电压:300/300V, 额定温度:70℃

导体使用绞线0.12-0.4mm2裸铜丝

PVC绝缘

可通过GB 18380.1垂直耐燃试验

用标准厚度、易剥、易裁

具有抗酸碱、耐油、防潮、防霉、环保等特性
PRODUCT DESCRIPTION

Rated voltage: 300/300VRated temperature:70℃

Stranded, bare copper conductor, 0.12-0.4mm2

PVC insulation

Passes GB 18380.1 vertical flame test

Uniform insulation thickness of wire to wire to ensure easy stripping and cutting

Resistant to acids, alkalis, oils, moisture and fungi,conforming RoHS
应用

适用于电器、仪表和电子设备及自动化装置用安装线

APPLICATION

For iwiring of electrical apparatus, meters, electronic equipments and automatic devices

AVRS 70℃  300/300V

导体型号 Conductor
Type

导体

Conductor

绝缘

Insulation

20℃最大导体

Max Resistance at 20℃

70℃最小绝缘
电阻

Min Insulation Resistance
at 70℃

耐电压

Dielectric Strength
AC 5 min

标准

长度
Standard Length

标称截面

Nom. Area

线数/
线径

直径

Dia.

标称

厚度

Nom. Thick.

标称

外径

Nom.Dia.

最大外径 Max. Dia
mm2 No./mm mm mm mm mm Ω/km MΩ.Km V M
绞合导体
Stranded Conductor
2×0.12 7/0.15 0.45 0.5 3.0 3.4 158.0 0.018 1500 500
2×0.2 12/0.15 0.60 0.6 3.6 4.2 92.3 0.017
2×0.3 16/0.15 0.69 0.6 3.8 4.4 69.2 0.016
2×0.4 23/0.15 0.83 0.6 4.2 4.8 48.2 0.014 300
