BVV PVC Insulated and Jacketed Cable

BVV

聚氯乙烯绝缘护套电缆

PVC Insulated and Jacketed Cable

标准 Standard: JB 8734.2--98

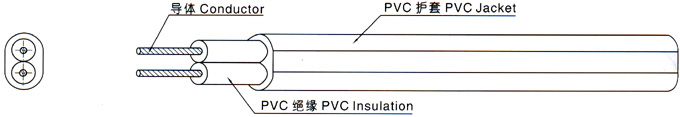

■ 构造 CONSTITUTION：

■ 产品说明

PRODUCT DESCRIPTION

●	Rated voltage: 300/500V，Rated temperature:70℃
●	Stranded, bare copper conductor, 0.75-10.0mm²
●	PVC insulation
●	PVC jacket
●	Passes GB 18380.1 vertical flame test
●	Resistant to acid, alkali, oil, moisture and fungi，comforming RoHS

■ 应用

适用于固定布线用电源线

APPLICATION

Power supply wires for fixed wiTring

BVV 70℃ 300/500V
导体类型 Conductor Type	导体 Conductor			绝缘 Insulation		护套 Jacket			20℃ 最大导体电阻Max Resis- tance at 20℃		70℃ 最小绝缘电阻 Max Insulation Resis- tance at 20℃	耐电压 Dielec- tric Strength AC 5 min	标准长度 Standard Length
	标称截面 Nom. Area	线数/ 线径	直径 Dia	标称厚度 Nom. Thick	标称外径 Nom. Dia.	标称厚度 Nom. Thick.	标称外径 Nom. Dia.	最大外径 Max. Dia	铜芯 Cu	铝芯 AC	70℃ 最小绝缘电阻 Max Insulation Resis- tance at 20℃	耐电压 Dielec- tric Strength AC 5 min	标准长度 Standard Length
	mm²	No./mm	mm	mm	mm	mm	mm	mm	Ω/Km	Ω/Km	MΩ.Km	V	(M)
实心导体 Solid conductor	0.75	1/0.97	0.97	0.6	2.17	0.8	3.77	4.4	24.5	/	0.012	2000	200
	1.0	1/1.13	1.13	0.6	2.33	0.8	3.93	4.5	18.1	/	0.011
	1.5	1/1.38	1.38	0.7	2.78	0.8	4.38	5.0	12.1	/	0.011
	2.5	1/1.78	1.78	0.8	3.38	0.8	4.98	5.7	7.41	12.1	0.010
	4.0	1/2.24	2.24	0.8	3.84	0.9	5.64	6.5	4.61	7.41	0.0085
	6.0	1/2.76	2.76	0.8	4.36	0.9	6.16	7.1	3.08	4.61	0.0070
绞合导体 Standed Conductor	1.5	7/0.524	0.524	0.7	2.97	0.8	4.57	5.2	12.1	/	0.010
	2.5	7/0.674	0.674	0.8	3.62	0.8	5.22	5.9	7.41	/	0.009
	4.0	7/0.85	0.85	0.8	4.15	0.9	5.95	6.8	4.61	/	0.0077
	6.0	7/1.04	1.04	0.8	4.74	0.9	6.54	7.3	3.08	/	0.0065
	10.0	7/1.35	1.35	1.0	6.05	0.9	7.85	8.8	1.83	3.08	0.0065
