H05VV-F、H05VVH2-F

H05VV-F、H05VVH2-F

聚氯乙烯护套电线

Light-duty PVC Insulated Flexible Cords

标准 Standard: DIN VDE0281-5(HD 21.5S3)

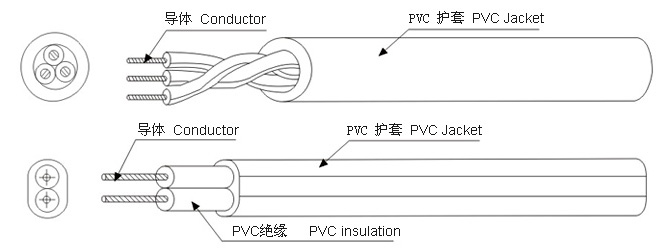

■ 构造 CONSTITUTION：

■ 产品说明
●

额定电压：300/500V,额定温度：70℃

●

导体使用绞线0.75-4.0mm2裸铜或镀锡丝

●

PVC绝缘

● PVC护套
●

可通过DIN VDE HD 405.1垂直耐燃试验

●

使用标准厚度、易剥、易裁

●

具有耐PS、耐ABS、环保等特性

PRODUCT DESCRIPTION
●

Rated voltage: 300/500V,Rated temperature:70℃

●

Stranded Tinned or bare copper conductor, 0.75-4.0mm2

●

PVC Insulation

● PVC Jacket
●

Passes DIN VDE HD405.1 Vertical flame test

●

Uniform insulation thickness of wire to ensure easy stripping and cutting

●

Resistant to PS and ABS,Conforming RoHS

■ 应用

适用于一般电子、电器设备电源连线

APPLICATION
For general purpose internal wiring of electronic and eclectrical equipment

H05VV-F H05VVFH2-F 70℃ 300/500V

导体
型号

Conductor
Type

导体

Conductor

芯数

Cores

绝缘

Insulation

护套

Jacket

20℃最大
导体电阻

Max Resistance at 20℃

70℃最小
绝缘电阻

Min Insulation  Resistance,

耐电压

Dielectric Strength
AC 1 min

标准长度 Standard Length

标称
截面

Nom. Area

线数/
线径
直径
Dia

标称厚度 Nom. Thick.

标称外径 Nom. Dia.

标称
厚度 Nom. Thick.

标称外径 Nom. Dia.
最大外径 MAX. Dia.
mm2
No./mm
mm

No.

mm

mm

mm
mm

mm

Ω/Km
MΩ.Km
V
M

绞合
导体

Stranded
Conductor

0.75
24/0.20
42/0.15
1.13
2
0.6
2.33
0.8
4.0×6.4
4.5×7.2
26.0
0.011
2000
200
2
6.4
7.2
3
6.8
7.6
1.0
32/0.20
1.3
2
0.6
2.5
4.0×6.4
4.7×7.5
19.5
0.010
2
6.6
7.5
3
7.0
8.0
