AVX、AEX Low-Voltage Cable for Automobile

AVX、AEX


汽车用低压电线

Low-Voltage Cable for Automobile

标准 Standard: JASO D 608-92

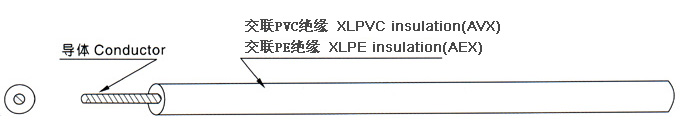

构造 CONSTITUTION:

产品说明

额定电压:无规定, 额定温度:100℃(AVX)120℃(AEX)

导体使用绞线0.5-8mm2裸铜或镀锡丝

汽车专用交联PVC绝缘(AVX)和汽车专用交联PE绝缘(AEX)

可通过JASO D 608-92耐燃试验

使用标准厚度、易剥、易裁

具有抗酸碱、耐热、耐寒、耐磨、耐油等特性

PRODUCT DESCRIPTION

Rated voltage: not specifiedRated temperature:100

Stranded, tinned or bare copper conductor,0.5-8mm2

Special irradiated  XLPVC(AVX) and irradiated XLPE(AEX)insulation for automobile

Passes JASO D 608-92 flame test

Uniform insulation thickness of wire to ensure easy stripping and cutting

Resistant to acids, alkalis, heat, cold, abrasions and oils

应用

适用于车辆高温区电器及仪表线路用连线

APPLICATION

For internal wiring of vehicles meters circuits and electrical equipment in high temperature condition

AVX 100℃ AEX 120 ℃ 无电压值

导体

Conductor

绝缘

Insulation

20℃最大导体电阻Max Resistance at 20℃

70℃最小绝缘电阻Min Insulation Resistance at 70℃

耐电压

Dielectric Strength AC 1 min

标准长度Standard Length

标称截面

Nom. Area

线数/线径 直径 Dia

标称厚度 Nom. Thick.

标称外径 Nom. Dia.

最大外径 Max.Dia.

裸铜丝 Bare Copper 镀锡铜丝 Tinned Copper
mm2 No./mm mm mm mm mm Ω/Km Ω.mm V (M)
0.5f 20/0.18 1.0 0.5 2.0 2.2 36.7 38.6 109 1000 500
0.5 7/0.32 1.0 2.0 2.2 32.7 34.6
0.75f 30/0.18 1.1 2.2 2.4 24.4 25.8
0.85 11/0.32 1.2 2.2 2.4 20.8 22.0
1.25f 50/0.18 1.5 0.6 2.7 2.9 14.7 15.5
1.25 16/0.32 1.5 2.7 2.9 14.3 15.1
2.0 26/0.32 1.9 3.1 3.4 8.81 9.30 300
3.0 41/0.32 2.4 0.7 3.8 4.1 559 5.90
5.0 65/0.32 3.0 0.8 4.6 4.9 3.52 3.72 200
8.0 50/0.45 3.7 0.8 5.3 5.6 2.32 2.45
