THHN 绝缘尼龙护套电缆

THHN


聚氯乙烯绝缘尼龙护套电线

PVC insulated and Nylon Jacketed Cable

标准 Standare:UL 83,  CSA C22.2 No.75

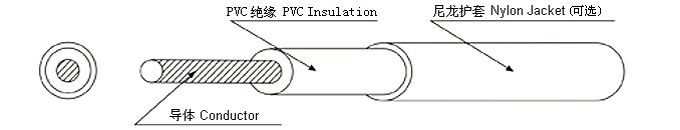

构造 CONSTITUTION:

产品说明

额定电压:600V, 额定温度:90℃干燥

导体使用单根线或绞线14-2/0AWG裸铜或镀锡丝

PVC绝缘、尼龙护套

可通过UL VW-1垂直耐燃试验

使用标准厚度、易剥、易裁

具有抗酸碱、耐油、防潮、防霉、耐磨、耐高低温、环保等特性

PRODUCT DESCRIPTION

Rated voltage:600V, Rated temperature:90dry

Stranded,tinned or bare  copper conductor,14-2/0AWG

Color-coded PVC insulation、Nylon Jacket

Passes UL VW-1 vertical flame test

Uniform insulation thickness of wire to ensure easy stripping and cutting

Resistant to acids, alkalis, oil, moisture、 fungi、abrasion、 crushing、weather and cold,conforming RoHS

应用

器具内部连接

APPLICATION
Internal wiring of Appliances

THHN  90℃ 600V

型号

Type

导体

Conductor

绝缘

Insulation

护套

Jacket

20℃最大导体

Max Resistance at 20℃

20℃最小绝缘

Min Insulation Resistance at 20℃

耐电压

Dielectric Strength AC 1 min

标准

长度 Standard Length

线规

Spec

线数/线径

直径

Dia.

标称

厚度

Nom. Thick.

标称

外径
Nom. Dia.

护层

厚度

Secondary Nom.Thick.

标称

外径
Nom. Dia.

AWG No./mm mm mm mm mm mm Ω/km MΩ.Km V Ft(M)

THWN

14 19/0.37 1.86 0.38 2.65 0.10 2.85 8.62 15 2000 1000(305)
12 19/0.47 2.36 0.38 3.15 0.10 3.25 5.43
10 19/0.59 2.97 0.38 4.00 0.10 4.20 3.41
