AVVR护套软线

AVVR

聚氯乙烯绝缘聚氯乙烯护套软线

PVC Insulated and Jacketed Flexible Cords

标准 Standard: JB 8734.4--98

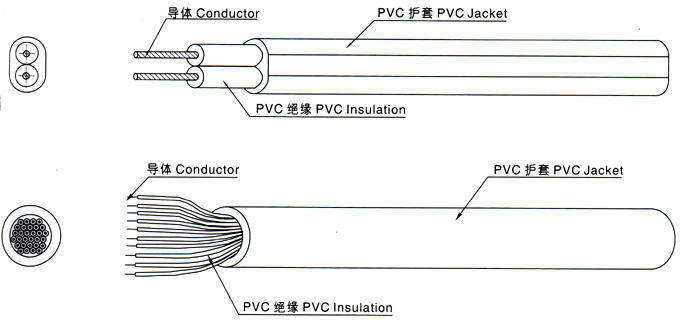

■ 构造 CONSTITUTION：

■ 产品说明

●	使用标准厚度、易剥、易裁
●	具有抗酸碱、耐油、防潮、防霉、环保等特性

PRODUCT DESCRIPTION

●	Rated voltage: 300/300V，Rated temperature:70℃
●	Stranded, bare copper conductor,0.08-0.4mm²
●	PVC insulation
●	PVC jacket
●	Passes GB 18380.1 vertical flame test

●	Uniform insulation thickness of wire to ensure easy stripping and cutting
●	Resistant to acid,alkail,oil,moisture and fungi,conform RoHS

■ 应用

适用于电器、仪表和电子设备及自动化装置用安装线

APPLICATION

For iwiring of electrical apparatus, meters, electronic equipments and automatic devices

AVVR-70℃ 300/300V

导体类型Conductor Type	导体 Conductor			芯数 Cores	绝缘 Insulation		护套 Jacket			20℃较大导体电阻 Max Resis- tance at 20℃	70℃*小绝缘电阻 Max Resis- tance at 70℃	耐电压 Dielec- tric Strength AC 5 min	标准长度 Standard Length
	标准截面 Nom. Area	线数/线径	直径 Dia		标称厚度 Nom. Thick	标称外径 Nom. Dia	标称厚度 Nom. Thick.	标称外径 Nom. Dia	较大外径 Max. Dia
	mm²	No./mm	mm	No	mm	mm	mm	mm	mm	MΩ.Km	MΩ.Km	V	(M)
绞合导体Stranded Coductor	0.08	7/0.12	0.37	2	0.4	1.17	0.6	3.6	4.1	247	0.018	1500	300
								2.4×3.6	2.7×4.1
	0.12	7/0.15	0.46	2	0.4	1.3	0.6	3.80	4.3	158	0.016	1500
								2.5×3.80	2.8×4.3
				3				4.00	4.5
				4				4.30	4.9
				5				4.70	5.3
				6-7				5.00	5.7				200
				8				5.40	6.0
				9				5.90	6.5
				10				6.30	7.2
				11-12				6.50	7.3
	0.2	12/0.15	0.60	2	0.4	1.40	0.6	4.00	4.7	92.3	0.014		300
								2.6×4.00	3.0×4.7
				3				4.30	4.9
				4				4.60	5.4
				5				5.00	5.8
				6-7				5.40	6.3				200
				8				5.90	6.7
				9				6.40	702
				10				6.80	8.0
				11-12				7.10	8.2
	0.3	16/0.15	0.69	2	0.5	1.69	0.6	4.6	5.3	69.2	0.014		300
								2.90×4.60	3.4×5.3
				3				4.90	5.7
				4				5.40	6.2				200
				5				5.90	6.7
				6-7				6.30	7.3
				8			0.7	7.10	8.0
				9				7.70	8.6
				10			0.8	8.40	9.7				150
				11-12				8.70	10.1
	0.4	23/0.15	0.83	2	0.5	1.83	0.6	4.90	5.7	48.2	0.013		300
								3.10×4.90	3.5×5.7
				5				6.30	7.2				200
				6-7				6.80	7.8
				10				9.00	10.4				150
				11-12				9.30	10.8
