RVVP RVVP1多芯屏蔽电缆

RVVP、RVVP1

多芯屏蔽电缆

Multi-Conductor Shielded Cable

标准 Standard: JB 8734.5-1998

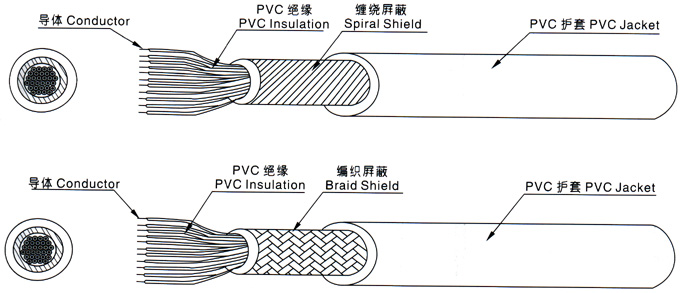

■ 构造 CONSTITUTION：

■ 产品说明

●	使用标准厚度、易剥、易裁
●	具有抗酸碱、耐油、防潮、防霉、环保等特性

PRODUCT DESCRIPTION

●	Rated voltage: 00/300V，Rated temperature:70℃
●	Stranded, bare copper conductor,0.08-1.5mm²
●	PVC insulation
●	Tinned or bare copper wire sporal or braid shield
●	PVC jacket
●	Passes GB 12666.2 vertical flame test

●	Uniform insulation thickness of wire to ensure easy stripping and cutting
●	Resistant to acid,alkail,oil,moisture and fungi,conform RoHS

■ 应用

适用于电器、仪表和电子设备及自动化装置用连线

APPLICATION

For internal wiring of vehicles meters circuits and electrical equipment in high temperature condition

RVVP、RVVP1 70℃ 300/300V
型号 Style	异体 Conductor			芯数Cores	绝缘 Insulation		屏蔽Shield	护套 Jacket			最大异体电阻 Max Resis- tance at 20℃	最小绝缘电阻 Max Insul- ation Resis- tance at 70℃	耐电压 Dielec- tric Strength AC 5 min	标准长度Standard Length
	标准截面 Nom. Area	线数/线径	直径 Dia		标称厚度 Nom. Thick	标称外径 Nom. Dia.	缠绕/编织 Spiral/ Braid	标称厚度 Nom. Thick.	标称外径 Nom. Dia.	最大外径 Max. Dia
	mm²	No./mm	mm	No.	mm	mm	mm	mm	mm	mm	Ω/Km	MΩ.Km	V	(M)
RVVP1	0.08	7/0.12	0.37	1	0.4	1.17	0.10	0.4	2.20	2.5	247.0	0.018	1500	500
				2			0.10		3.40	4.2
	0.12	7/0.15	0.46	1	0.4	1.26	0.10	0.4	2.30	2.6	158.0	0.016	1500
				2			0.10	0.6	4.00	4.9				300
				3			0.10		4.10	5.1
				4			0.15		4.60	5.8
				5			0.15		5.00	6.2
	0.2	12/0.15	060	1	0.4	1.40	0.10	0.4	2.40	2.8	92.3	0.016	1500	500
				2			0.10	0.6	4.20	5.3				300
				3			0.15		4.60	5.8
				4			0.15		4.90	6.2
				5			0.15		5.30	6.7
	0.3	16/0.15	0.69	1	0.5	1.69	0.10	0.4	2.70	3.1	69.2	0.014	1500	500
				2			0.15	0.6	4.90	6.2				300
				3			0.15		5.20	6.5
				4			0.15		5.60	7.0				200
				5			0.15		6.10	7.6
RVVP	0.08	7/0.12	0.37	1	0.4	1.17	16/3/0.10	0.4	2.40	2.9	247.0	0.018	1500	500
				2			16/4/0.10		3.60	4.2				300
							16/4/0.10		2.4×3.6	2.9×4.2
	0.12	7/0.15	0.46	1	0.4	1.26	16/3/0.10	0.6	2.50	3.0	158.0	0.016	1500	500
				2			16/4/0.10		4.20	4.9				300
							16/4/0.10		2.9×4.2	3.4×4.9
				3			16/4/0.10		4.40	5.1
				4			16/4/0.15		4.90	5.8
				5			16/4/0.15		5.30	6.2
				6-7			16/4/0.15		5.60	6.6				200
				10			16/5/0.15		6.90	8.1
				12			16/6/0.15		7.10	8.3
	0.2	12/0.15	0.60	1	0.4	1.40	16/4/0.10	0.4	2.60	3.2	92.3	0.013	1500	500
				2			16/4/0.10	0.6	4.40	5.3				300
							16/4/0.10		3.0×4.4	3.6×5.3
				3			16/4/0.15		4.90	5.8
				4			16/4/0.15		5.20	6.2
				5			16/4/0.15		5.60	6.7				200
				6-7			16/4/0.15		6.00	7.2
				10			16/4/0.15	0.8	7.80	9.3
				12			16/4/0.15		8.10	9.6				150
