2468聚氯乙烯绝缘排线

聚氯乙烯绝缘排线
PVC Insulated Flat Ribbon Wire

标准 Standare:UL 758, 1581 CSA C22.2 No.210.2

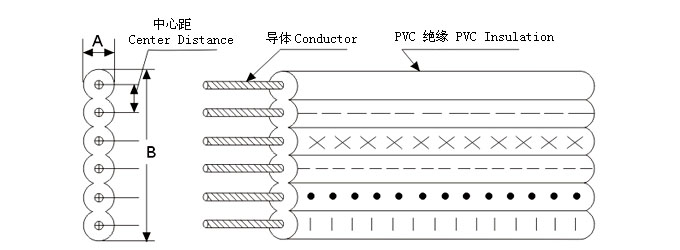

■ 构造 CONSTITUTION：

芯数Cores	2C	3C	4C	5C	6C	7C	8C	9C	10C	11C	12C
Ident Mark	-	×	-	●	∣	+	-	×-	-∣	+-	×-

■ 产品说明

PRODUCT DESCRIPTION

●	Rated voltage:300V, Rated temperature:80℃
●	Stranded,tinned or bare copper conductor,32-20AWG
●	Color-coded PVC insulation
●	Passes UL VW-1 & CSA FT1 vertical flame test
●	Uniform insulation thickness of wire to ensure easy stripping and cutting
●	Resistant to acids, alkalis, oils, moisture and fungi，conforming RoHS

■ 应用

适用于一般电子、电器设备内部连线，当暴露于有油环境时，不得超过60℃或80℃

APPLICATION

For general purpose internal wiring of electronic and electrical equipment, where exposed to oil at a temperature not exceeding 60℃or80℃

UL2468 80℃ 300V
导体类型 Conductor Type	导体 Conductor			芯数 Cores	中心距 Center Distance	绝缘 Insulation		最大导体电阻 Max Resistance at 20℃	最小绝缘电阻 Min Insulation Resistance at 20℃	耐电压 Dielectric Strength AC 1 min	标准长度 Standard Length
	线规 Spec	线数/ 线径	直径 Dia.			标称厚度 Nom. Thick.	标称外径 Nom. Dia.
	AWG	No./mm	mm	No.	mm	mm	mm	Ω/km	MΩ.Km	V	Ft(M)
绞合导体 Stranded Conductor	28	7/0.127	0.38	2	1.28	0.38	1.20×2.48	223.75	15	2000	1640(500)
				3			1.20×3.76
				4			1.20×5.04
				5			1.20×6.32				984(300)
				6			1.20×7.60
				7			1.20×8.88
				8			1.20×10.16				656(200)
				9			1.20×11.44
				10			1.20×12.72
				11			1.20×14.00
				12			1.20×15.28
	26	7/0.16	0.48	2	1.46	0.38	1.38×2.48	139.73	15	2000	1640(500)
				3			1.38×4.30				984(300)
				4			1.38×5.76
				5			1.38×7.22
				6			1.38×8.68				656(200)
				7			1.38×10.14
				8			1.38×11.6
				9			1.38×13.06
				10			1.38×14.52
				11			1.38×15.98
				12			1.38×17.44				492(150)
	24	11/0.16	0.61	2	1.62	0.38	1.52×3.14	93.3	15	2000	1640(500)
				3			1.52×4.76				984(300)
				4			1.52×6.38
				5			1.52×8.00				656(200)
				6			1.52×9.62
				7			1.52×11.24
				8			1.52×12.86
				9			1.52×14.48
				10			1.52×16.10
				11			1.52×17.72				492(150)
				12			1.52×19.34				328(100)
	22	17/0.16	0.76	2	1.72	0.38	1.62×3.34	55.0	15	2000	1640(500)
				3			1.62×5.06				984(300)
				4			1.62×6.78
				5			1.62×8.50
				6			1.62×10.22				328(100)
				7			1.62×11.94
				8			1.62×13.66
				9			1.62×15.38
				10			1.62×17.10
				11			1.62×18.82
				12			1.62×20.54
	20	26/0.16	0.96	2	1.90	0.38	1.80×3.70	34.6	15	2000	1640(500)
				3			1.80×5.60				984 (300)
				4			1.80×7.50
				5			1.80×9.40
				6			1.80×11.30				656(200)
				7			1.80×13.20
				8			1.80×15.10
